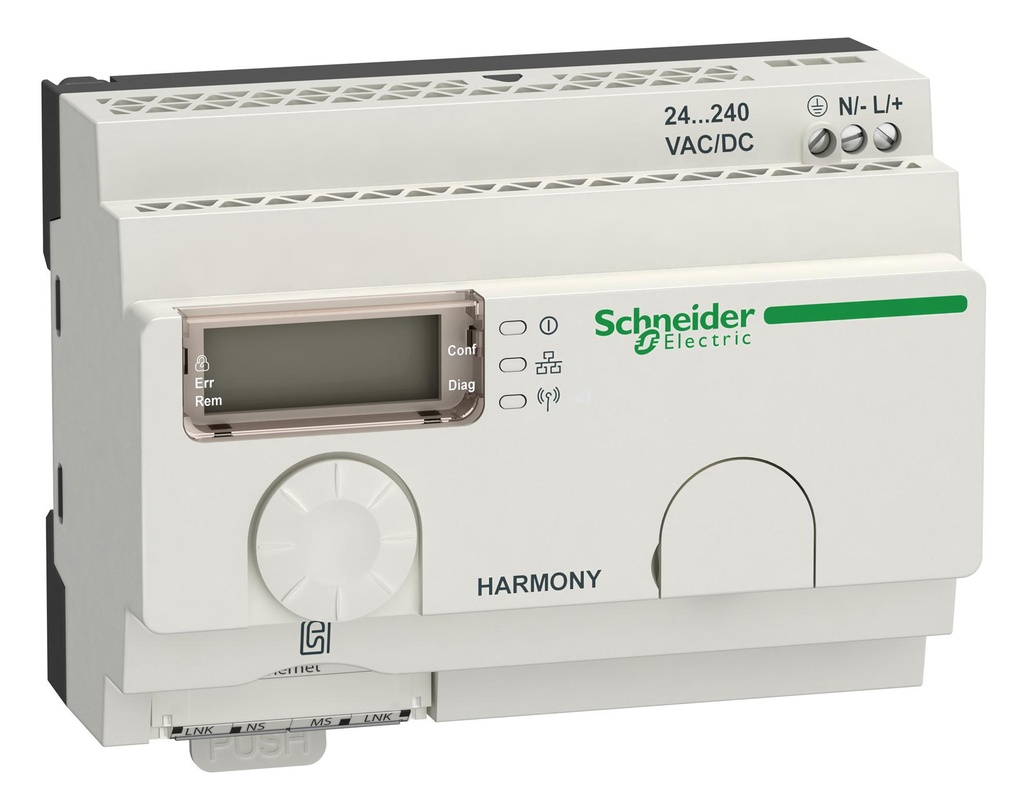

SCHNEIDER ELECTRIC - ZBRN1 - Wireless Access Point

BRAND: Schneider Electric
MODEL: ZBRN1
TECHNICAL SPECIFICATIONS:
* Product range: Harmony
* Product or component type: Wireless access point
* Specific product application: PLC interface
* Module function: Monostable multivibrator
* Communication port protocol: Zigbee Green Power 2.4 GHz compliant with IEEE 802.15.4
* Antenna type: Integrated
* Transmission frequency: 2405 MHz for receiver
* Nominal supply voltage: 24 to 240 V AC/DC at 50/60 Hz (-10...10%)
* Microbreak immunity: 10 ms
* Channel utilization: <= 60
* Power consumption in W: <= 4 W AC/DC
* Breaking capacity: 15 W
* Breaking capacity: 750 VA
* Control circuit frequency: 50...60 Hz +/- 10%
* Short-circuit protection: 16 A circuit breaker per GB2
* Operating position: Any position without reduction
* Integrated connection type: Ethernet Modbus TCP/IP (RJ45 on Modbus TCP network) 10/100 Mbit/s 2 twisted pairs
* Data storage device: SD card
* Topology: Devices connected via daisy-chain or splice connections
Ethernet port: 10BASE-T / 100BASE-T
Cable distance between devices: 1000 m
