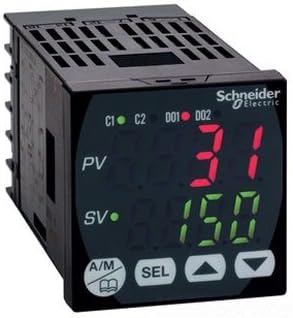

SCHNEIDER ELECTRIC - REG48PUN1JHU - Temperature Controller 48x48 100-240 V, UNIV, 4-20 mA

BRAND: SCHNEIDER ELECTRIC
MODEL: REG48PUN1JHU
TECHNICAL SPECIFICATIONS:
* Zelio Control Temperature Controller
* Analog Inputs:
- Thermocouple (type J, K, R, B, S, T, E, N, PLII)
- Current: 0…20mA / 4…20mA
- Voltage: 0…0.1V / 0…10V / 0…5V / 1…5V / 2…10V
* Supply Voltage: 100…240VAC
* Accuracy: 0.3% of full scale
* Outputs: 1 analog output 4…20mA
* Alarm Outputs: 2 C/O
* Communication: Modbus
* Physical Interface: Non-isolated RS485
* Display: 7-segment LCD, 4 digits
* Dimensions: 48 x 48 mm
